24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More

Name: 24V 130A Brushed DC Motor Controller For Electric ForkliftsFloorCleaning VehiclesAnd More
Brand: DALA
Price: 1 USD

Quality 24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More for sale

Brand Name : DALA

Model Number : D3P

Place of Origin : Chengdu,China

MOQ : Negotiable

Price : Negotiable

Packaging Details : standard packing, as customer demands

Delivery Time : 7 - 15 working Days

Payment Terms : L/C,T/T,etc.

Motor type : Brushed DC Motor (Bi-Di)

Function : Traction

Appolication : electric forklifts,floor-cleaning vehicles,and more

Nominal Voltage Range (VDC) : 24V

Maximum Current : 130A

Size : 131*72*41mm

Contact Now

Bldc Motor Controller D3P 24V 130A For Electric Forklifts,Floor-Cleaning Vehicles

Product Description:

The D3P controller series are brushed DC motor controllers with higher specification than D2P and applies to larger battery powered industrial vehicles. It supports serial communication port only but has a counterpart that supports CAN communication protocols. With a highly programmable software, the product could applied to almost any low power DC motor controlling scenarios without much limitation.

Features:

Full Featured

5 x Input Switch, 2 x NPN Output, Voltage Throttle.
Build-in regenerate break to recycle energy and charge to battery when motor stop working.
Advanced motor control algorithm provides smooth starting on a ramp.

Safety & Reliability

It has advanced MOSFET power section which enables smooth and seamless motor controlling performance.
The sealing and heat dissipation technologies are unique and self-developed by DALA.
Powerful Fault detection mechanisms are adopted such as the over/under voltage protection, overcurrent and overheat preventions etc.
Follow industrial practices plus innovative design and technologies for short circuit protection, brake control interface with hardware watchdog.

Specifications

Content	Parameters
Model	D3P
Nominal Input Voltage	24
20s output Current Rating (A)	130A
2 Min output Current Rating (A)	70A
60 Min output Current Rating (A)	45A
Communication	Serial
Operating Temperature	-30℃~55℃
Storage Temperature	-40℃~85℃
IP Rating	IP65
Motor Type	Brushed DC Motor (Bi-Di)

Applications

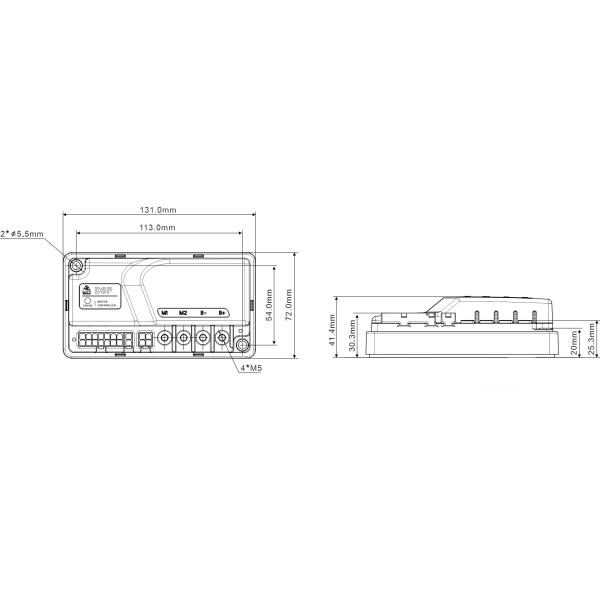

Dimensions

24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
